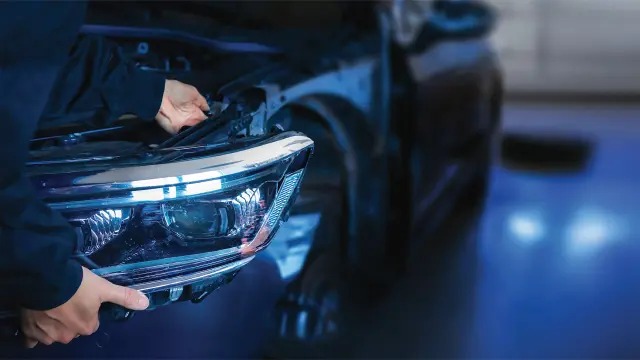

In the automotive industry, lighting assemblies—namely headlamps and taillamps—serve a dual purpose: safety and aesthetic appeal. They must meet stringent regulatory standards for performance (visibility, beam pattern) while maintaining flawless finish and fit. A tiny scratch, invisible bubble, or internal contamination can degrade light output or distort the design. That’s where modern inspection automation, powered by a robust Machine Vision System, steps in. By enabling Micron-Level Defect Detection, manufacturers can guarantee each lamp unit leaving the line is both safe and beautiful.
The Unique Challenges of Lamp Assembly Inspection
Inspecting headlamps and taillamps poses a number of specific hurdles:
- Reflective, Transparent, and Complex Materials: Lenses are typically made of clear or coated plastics (polycarbonate, acrylic) that reflect, refract, distort, or hide defects under light. Housing parts can have chrome inserts, reflective surfaces, or internal contrast materials.
- Multi-Material Assemblies: Assemblies include plastic lenses, housings, LEDs, PCBs, adhesives, seals—all of which may react differently under lighting or change the visual profile.
- 3D Shapes and Curved Surfaces: The front lens, inner reflectors, vents, seals, and edges introduce curves, depth changes, geometry that make flat-image inspection insufficient.
- Micro-Defects with Big Consequences: Internal dust, micro bubbles in plastic, glue overflow at joints, or tiny scratches on clear parts can reduce optical clarity, cause glare, or create regulatory non-conformities.
Manual inspection traditionally struggles with consistency, traceability, and detecting sub-millimeter or micron-level flaws, especially under high volume. Human fatigue, varying lighting, and subjective thresholds can all undermine reliability.
Intelgic’s Machine Vision System for Lamp Inspection
Intelgic’s Machine Vision System for Lamp Inspection
Intelgic has developed a turnkey Machine Vision System tailored to address the complexities of headlamp and taillamp inspection. Key aspects include:
1. High-Resolution Imaging & Micron-Level Defect Detection
- The system can detect defects as small as 0.1 mm (100 microns) or potentially smaller, including internal contamination, micro scratches, or surface finish irregularities.
- The AI-powered analysis ensures that even when defects are subtle—tiny bubbles, glue overflow, dust particles—they don’t slip through.
2. Specialized Lighting & Material-Aware Imaging
- Custom lighting modules reduce glare and reflections, essential for transparent or reflective lens surfaces.
- The system adjusts automatically for different materials in the same lamp (clear lens, colored diffusers, reflective inner surfaces). Material-aware imaging ensures that the light, contrast, exposure settings tune for each zone to reveal defects properly.
3. Robotic Motion & Multi-View Imaging
- Camera and lighting mounted on movable or robotic arms provide multi-angle imaging: front, sides, diagonal views, internal inspection. This ensures full geometry coverage even on curved or oddly shaped lamp housing.
- Overlapping views to prevent blind spots.
4. Real-Time Analysis, Pass/Fail Decision & Traceability
- AI software processes images in real time, flags defects, classifies them (glue leak, scratch, dust, deformation), measures size and coordinates.
- A data record with part ID, timestamp, operator/station info is generated. Defect reports include annotated images so problems can be located and addressed.
- Analytics dashboards allow batch-wise trending: which defects occur often, at which station, which material or supplier contributes more.
Typical Defects Found in Lamp Inspection
Intelgic’s solution detects, among others:
- Surface scratches or scuffs on lenses that affect aesthetics and optical clarity.
- Internal dust or contamination trapped during assembly or molding.
- Glue or weld line defects—uneven sealing, gaps, overflow that can allow moisture ingress.
- Deformation or warping—due to improper molding or cooling, affecting fit and optical properties.
- Optical distortions or material inconsistency—bubbles, haze, discoloration.
The detection of these is aided by the AI software’s ability to recognize what “normal” looks like for each lamp type, then flag deviations.
The Automated Inspection Process Step by Step
Here’s how a fully automated headlamp/taillamp inspection works:
- Introduction & Positioning
The part arrives via conveyor or robot, and is fixed in a known orientation in the inspection station. - Multi-Angle Imaging
Cameras (static or robotic) capture multiple views: lens front, sides, internal cavity through opening if available. Lighting adjusted for each view. - Image Processing & AI Analysis
Live Vision AI processes images: aligning them, correcting distortions, stitching overlapping views if needed, and then scanning for defects. - Defect Classification and Measurement
Each defect gets a type (scratch, contamination, glue line gap, etc.), its size, coordinate (e.g. top left lens edge), and severity. - Pass/Fail Judgment & Feedback
Based on predefined tolerance thresholds, assembly is accepted or rejected. If rejected, the system may trigger alarms, mark spot for rework, or feed into traceability logs. - Reporting & Analytics
Generate reports: images with defect annotations, aggregate data over time (which station, which defect type is most frequent), heatmaps, batch-level statistics.
Advantages of This Approach vs. Manual Inspection
| Advantage | Explanation |
| Consistency | Human inspectors vary—AI follows the same rules. No fatigue. |
| Throughput | Automated system inspects lamps much faster, even on high-volume lines. |
| Micron-Level Precision | Detects much smaller defects than can reliably be seen by eye under practical production lighting. |
| Full Geometry Coverage | Multi-angle, multi-view imaging catches defects hidden in curved or shaded areas. |
| Traceability | Annotated records, timestamps, batch IDs—critical for regulatory, warranty, and safety investigation. |
| Cost Savings | Fewer returns, less manual rework, fewer warranty claims. |
Implementation Considerations
For successful implementation, manufacturers should pay attention to:
- Lighting design: achieving glare control, consistent illumination across reflective and transparent surfaces.
- Fixture design: securing lamps in the correct orientation, minimizing occlusions.
- Camera calibration: ensuring lens distortions are minimized, using high-quality optics for clarity.
- AI model training: collecting enough samples of defects and “good” parts to cover variation; regular updates.
- Integration with line operations: ensuring the inspection station syncs well with upstream and downstream parts, rejects or marks parts, and data flows into MES or QC dashboards.
Real-World Impact and Outcomes
Implementing this automated inspection for lamps yields several measurable outcomes:
- Reduced defect escape onto the road—fewer customer complaints and warranty returns.
- Improved aesthetics and brand perception, since visible defects on lighting components are highly noticeable.
- Regulatory compliance—ensuring light transmission, beam pattern is not compromised by defects or internal contaminants.
- Data-driven improvements—identifying frequent defect types (e.g., glue overflow due to supplier variation, or dust ingress during assembly) and fixing upstream processes.
Why Micron-Level Defect Detection Matters
Micron-level detection is not simply about detecting ever-smaller flaws—it allows:
- Early detection before defects grow or impact function.
- Detecting defects that might affect optical clarity, even if not visible under lower resolution—thus affecting light scattering, beam quality.
- Meeting or exceeding regulatory standards in many jurisdictions that specify tolerances for light diffusion, haze, and optical integrity.
Headlamps and taillamps are more than styling—it’s safety and regulation. To deliver lighting assemblies with zero tolerance for flaws, manufacturers must move beyond manual checks. Intelgic’s Machine Vision System for headlamp and taillamp inspection, armed with Micron-Level Defect Detection, enables comprehensive coverage, real-time analysis, and consistent, traceable quality.
While the focus here is on lamp assemblies, the same precision and approaches are closely aligned with PCB Board Inspection for Component Verification—since many lighting units include integrated LED modules or PCBs. Integrating these inspection disciplines under a shared AI-vision framework ensures that both aesthetic optical components and electronic circuits jointly meet the highest quality standards.
If you’re considering upgrading your lighting inspection line—or integrating more advanced inspection for your electronics and optical modules—this kind of automated system isn’t just nice to have; it’s fast becoming essential for modern automotive manufacturing.
